Ⅰ Introduction

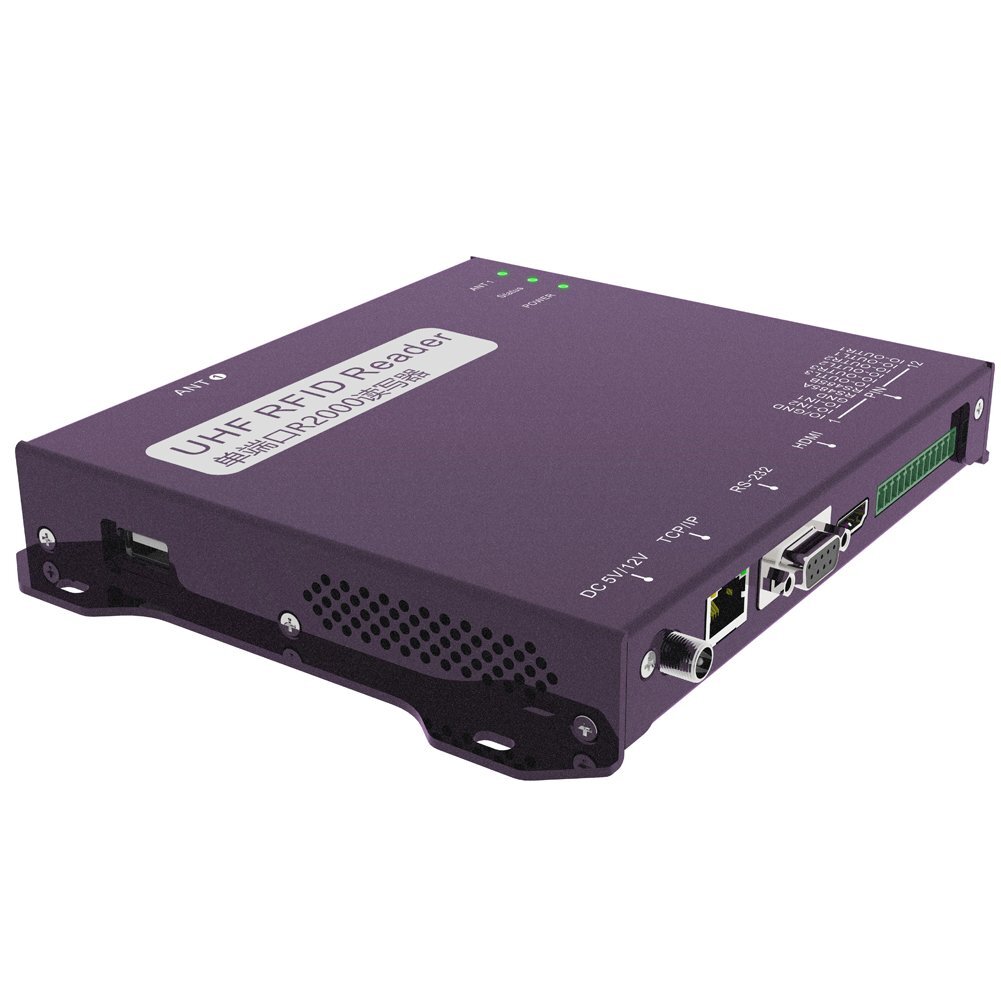

RD-1A Reader is a high-performance RFID module designed and developed by Cykeo. It is equipped with one TNC antenna interface. It has the leading reception sensitivity in the industry. The single tag recognition rate is fast, and the multi-tag processing ability is strong. At the same time, the reading and writing module adopts independent die opening, all-aluminum die casting, exquisite appearance, excellent heat dissipation performance.



Ⅱ Features

1. Based on Impinj R2000：It is designed based on the R2000 special UHFRFID chip with excellent performance, with strong scalability, stable performance, and powerful functions, which can meet a variety of applications;

2. Excellent read & write performance：The reader has excellent reading performance, with a reading distance of up to 20M, a writing distance of up to 10M, and a reading speed of >500 times per second;

3. Configuration: It uses the Android4.4 operating system, and is equipped with a dedicated UHFRFIDR2000 chip, and a 1.6GHz quad-core processor;

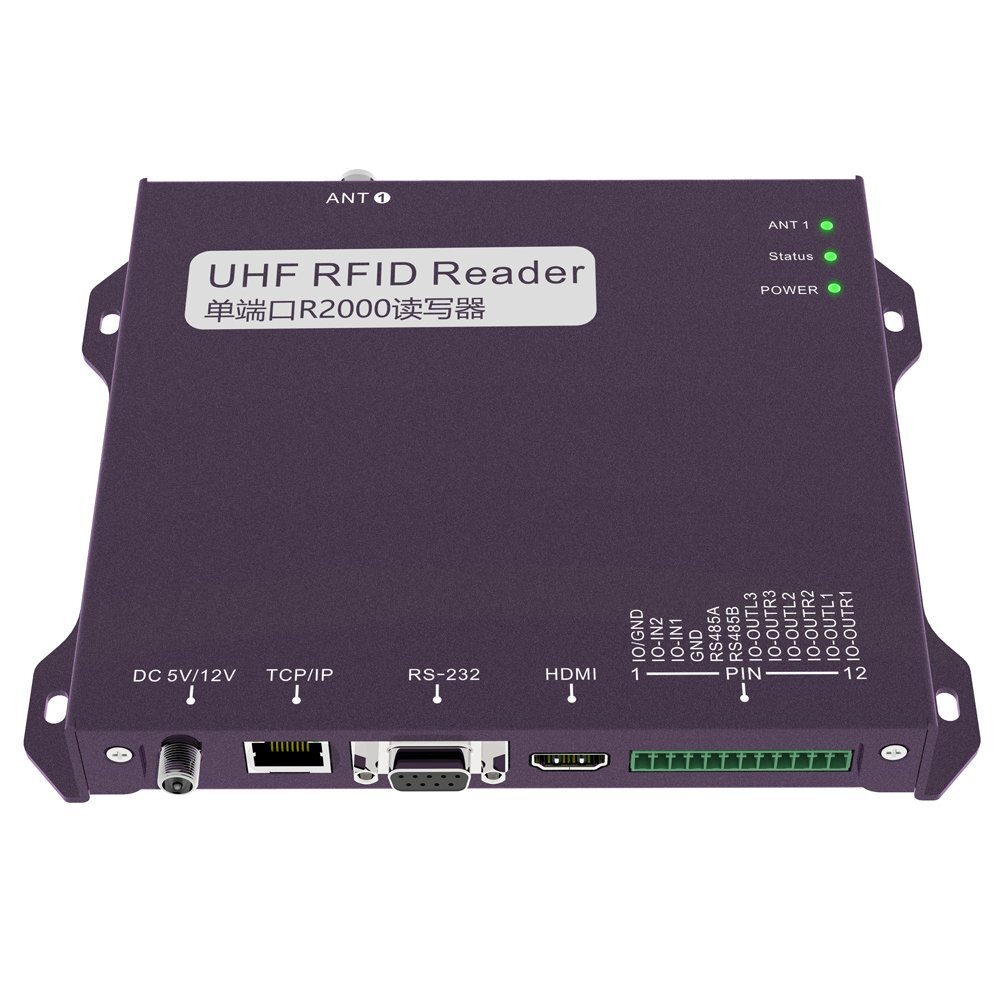

4. Optional application: It supports one 485 interface, 3 GPO outputs, 2 GPI inputs, one USB output, and HDMI high-definition output;

5. Supports full-band work: China, Europe, the United States, Japan and other different frequency bands, GB, 920MHz～925MHz, 840MHz-845MHz; FCC, 902MHz～928MHz; ETSI865MHz～868MHz; JP,916MHz～920MHz;

6.  Wide scope of application: It is widely used in different fields such as vehicle inspection, customs clearance, vehicle inspection, personnel entry and exit, asset entry and exit, electronic ticket, file management, jewelry management, warehouse management and so on.
